VT-3 Model

MAXIM SILENCER APPLICATIONS

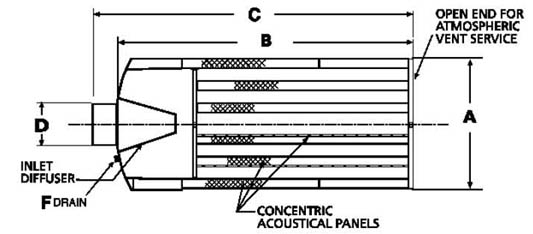

Size A B C D E F Est. Wt.
14" 14 74 1/2 77 1/2 4 3 1 315
18" 18 89 1/2 92 1/2 6 3 1 458
22" 22 118 121 6 3 1 732
26" 26 132 135 8 3 1 1034
30" 30 155 1/2 159 10 3 1/2 1 1768
36" 36 184 1/2 187 1/2 12 3 1/2 1 2656
40" 40 207 210 1/2 14 3 1/2 1 3467
45" 45 235 1/2 239 16 3 1/2 1 4487
Note: Dimensions are in inches, weights are in pounds.

Typical Applications: Features: Optional Accessories:
• Process vents
• Safety & relief valve discharge
• Small process vents
• Compressor & gas
• Transmission line blowdown		 • Advanced acoustical design
• All welded construction & long service life
• Long strand glass wool packing
• Prime coated exterior finish		 • Companion flanges
• Metallic wool packing
• Side inlet & outlet connection
• Various support arrangements
• Flanged inlet
• Special paints
Sample Specification:
The silencer shall be a Maxim Model VT-3 absorptive type silencer with inlet flow diffuser. Acoustical packing shall be long strand glass-fiber cloth, wire screen, and perforated metal. The silencer shall be of all welded construction with exterior surfaces protected with a single coat of shop primer. It shall be supplied with the following accessories
VT-3 - Atmospheric Vent Silencer for Very High Attenuation of High Frequency Noise – Expected Attenuation is 50 to 55 dBA

Use for the highest degree of silencing of high frequency noise associated with steam or gas vents. The VT-3 provides the maximum noise reduction that can be practically obtained.

Use for excellent silencing of high frequency noise associated with steam or gas vents. The VT-2 is shorter and more economical than the VT-3.

Use for impressive silencing of high frequency noise associated with steam or gas vents. The VT-1 has a very high performance to cost ratio. Installation of the VT-1 on a high pressure safety valve discharge will satisfy any concerns regarding worker safety or OSHA noise compliance.

For relatively small vent applications, the VT-S offers impressive silencing of the noise associated with steam or gas vents. The VT-S has a very high performance to cost ratio.
