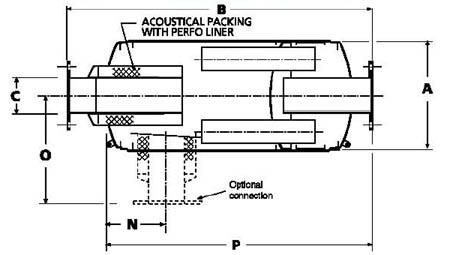

MAXIM SILENCER APPLICATIONS |
|
Size |
A |
B |
C |
N |
O |
P |
Est. Wt. |
|
Min. |
Max. |
|
4" |
14 |
52 |
4 |
8 1/2 |
19 |
23 |
45 |
150 |
|
5" |
16 |
60 |
5 |
10 |
21 1/2 |
26 |
52 1/4 |
195 |
|
6" |
18 |
69 |
6 |
10 |
26 1/2 |
30 |
60 1/4 |
250 |
|
8" |
22 |
84 |
8 |
11 |
33 1/2 |
36 |
73 1/2 |
380 |
|
10" |
26 |
101 |
10 |
13 1/2 |
40 |
43 |
88 |
620 |
|
12" |
30 |
121 |
12 |
15 |
50 |
51 |
106 1/4 |
1030 |
|
14" |
36 |
115 |
14 |
18 |
44 |
52 |
99 1/4 |
1230 |
|
16" |
40 |
135 |
16 |
20 |
53 |
59 |
116 1/2 |
1815 |
|
18" |
45 |
140 |
18 |
25 |
54 |
58 |
124 |
2750 |
|
20" |
50 |
159 |
20 |
26 |
64 |
59 |
141 1/4 |
3210 |
|
22" |
54 |
177 |
22 |
29 |
71 |
60 |
154 1/4 |
3895 |
|
24" |
60 |
184 |
24 |
30 |
73 |
60 |
162 1/4 |
4330 |
|
26" |
64 |
204 |
26 |
31 |
84 |
60 |
180 1/2 |
5005 |
|
28" |
68 |
223 |
28 |
33 |
92 |
62 |
197 3/4 |
6625 |
|
30" |
72 |
241 |
30 |
34 |
102 |
62 |
213 3/4 |
7315 |
|
32" |
76 |
250 |
32 |
36 1/2 |
102 1/2 |
64 |
220 3/4 |
8415 |
|
34" |
82 |
252 |
34 |
37 1/2 |
102 1/2 |
64 |
220 1/2 |
8995 |
|
36" |
86 |
254 |
36 |
37 1/2 |
102 1/2 |
65 |
221 |
9485 |
|
Note: Dimensions are in inches,
weights are in pounds. |
|
Typical Applications: |
Features: |
Optional Accessories: |
• Rotary positive blower
intake
& discharge
• Wet exhaust systems (mix
temperature not exceed 200 oF
at silencer) |
• Superior acoustical design
& long service life
• Excellent sound absorbing
material
• Double wall, all welded
construction
• Extra long packed section
• Prime coated exterior finish
• Installed in any position |
• Stainless Steel or Monel
construction
• Flanged connections
• Standard pipe size necks |
|
Sample
Specification: |
| The silencer shall be a Maxim Model
MB31 with heavy wall, all welded construction,
protected by a single coat of shop primer.
Acoustical packing shall be polyester wool or other
material suitable for the application, protected by
perforated metal with wire screen/cloth. The
silencer shall be complete with the following
accessories: |
|
|

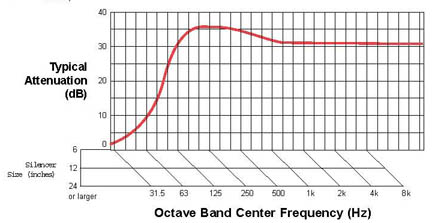

MB31 / MB31-I - Combination Acoustically
Packed and Chamber Silencer for Blower
Service – Typical Attenuation is 30 dBA
Use for a high degree of overall attenuation on
blower intakes or discharges. For intake service,
specify the MB31-I.
Use for good attenuation on blower intakes or
discharges. For intake service, specify the MB21-I.
Use for a high degree of attenuation of high
frequency noise on blower intakes or discharges.
For intake service, specify the MB11-I.
|
