All Units to be sold as is/where is, no guarantees, no shipping.
Item #1-SOLD!!!!

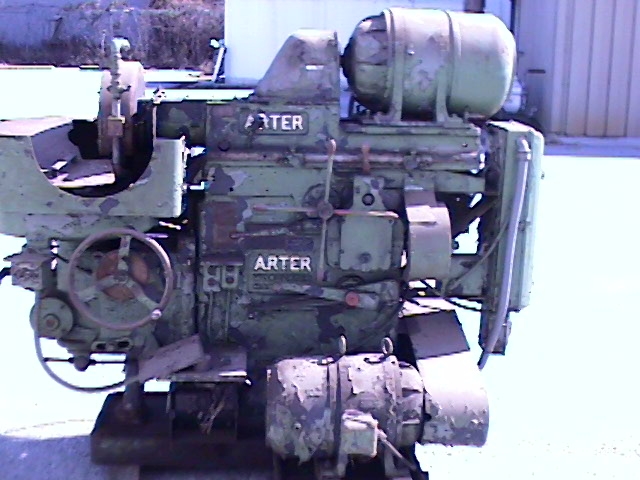

Before After Arter Rotary Table Grinder 16" wheel, 16" magnetic table, 24" swing,
12" max between wheel and table, 30 gal coolant tank, 1/2 hp pump, 220/440
3 phase, 5 hp motors on wheel and feeds, very solid older machine, works
great. Looks great.
Item #2

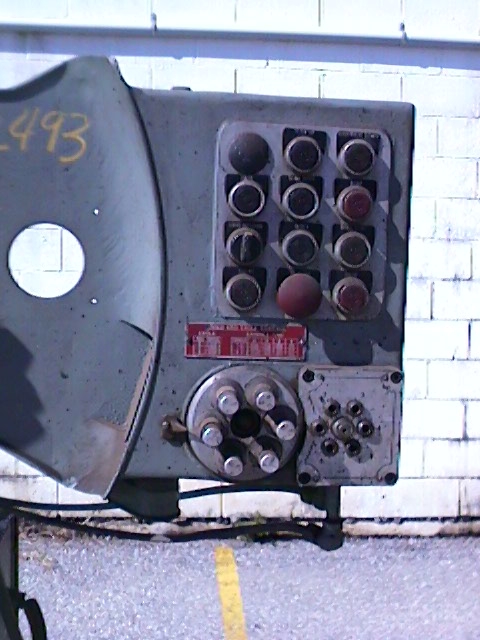

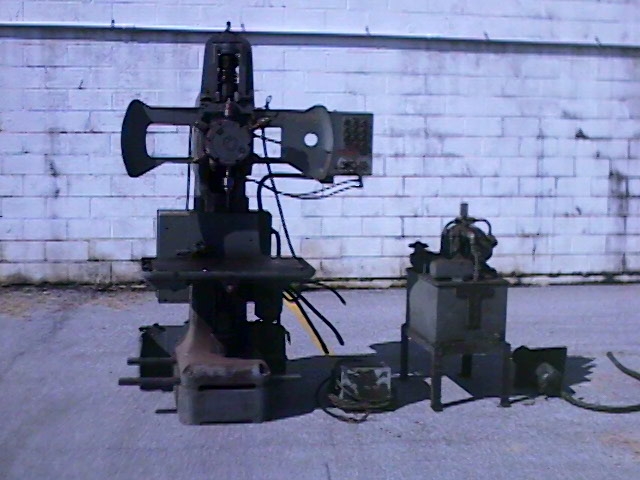

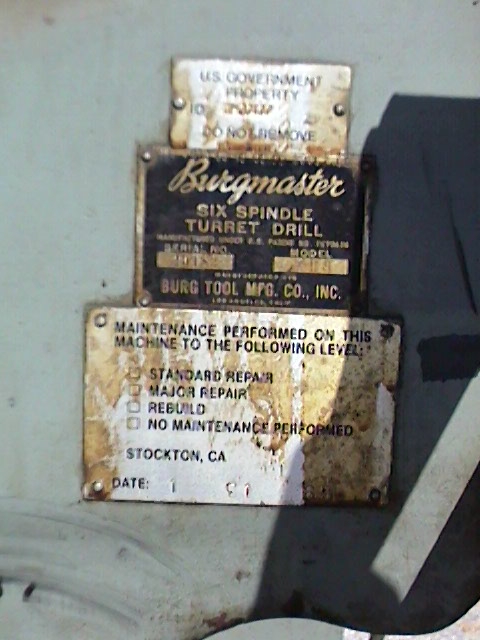

Model 2BH Burgmaster 6-Spindle Turret Type Automatic Hydraulic Drilling,
Tapping, and Boring Machine, S/N 20182.
Capacity in Mild Steel-3/4"
Ram and Spindle travel-8"
Max distance, spindle nose to table-24"
Throat Depth-12 1/4"
Working Surface of table-17"x34"
Rapid approach and return feed rate-240 IPM
Variable preselect feeds 1/4 to 50 IPM
12 preselected speeds 225 to 3000 RPM
Equipped with:
pre-selector Speeds and Feeds
Automatic Cycle
Quick Setting depth stops
Rapid approach and return of spindle head
button control station
Bijur lubrication system
approx. weight 3000 #
Height-6'8"
Excellent Condition, selling as is where is.
Item #3
Wallace Coast #500 2 1/2" Pipe Bender SN12335 or SN16571
Item #4-SOLD!!!!

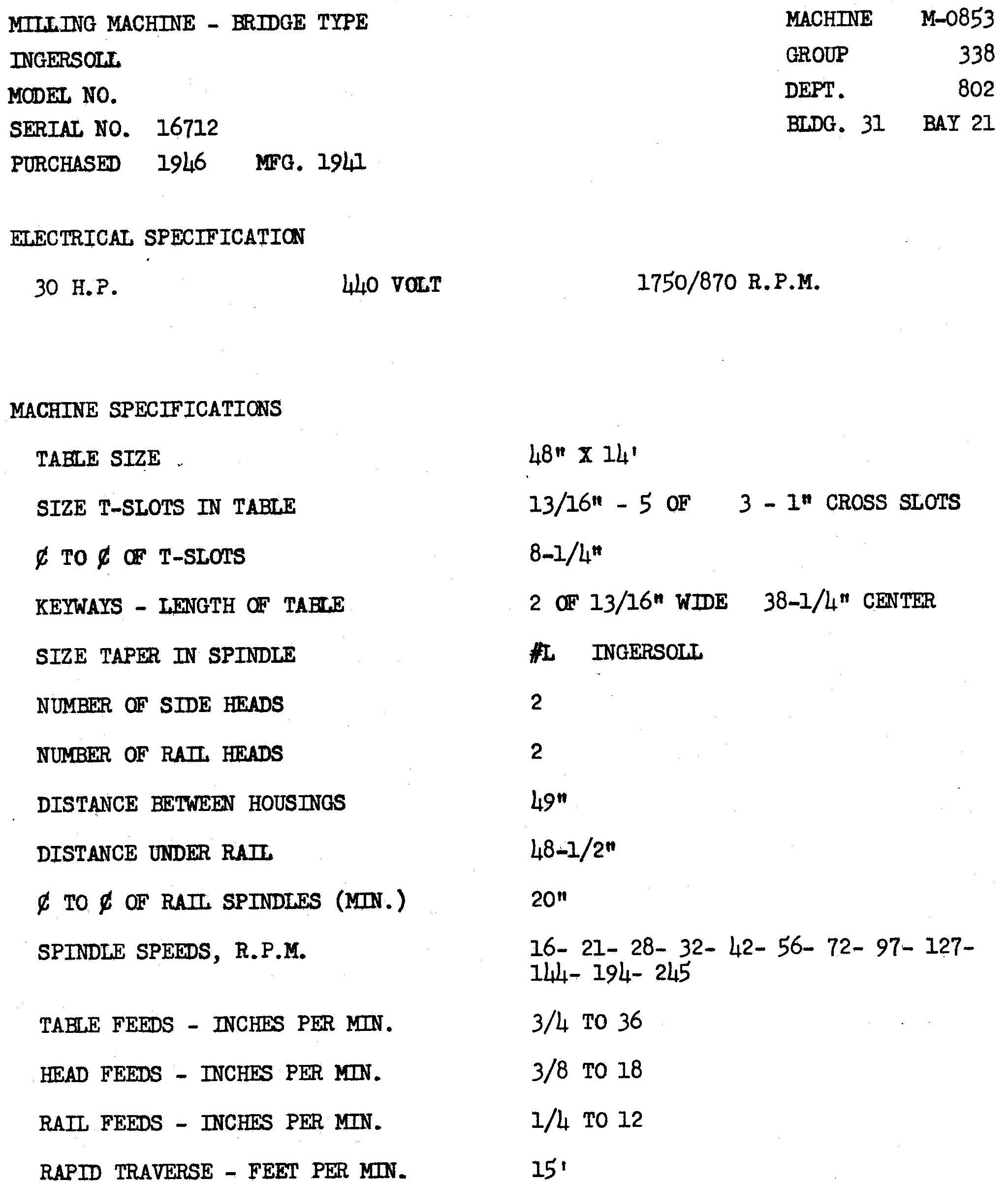

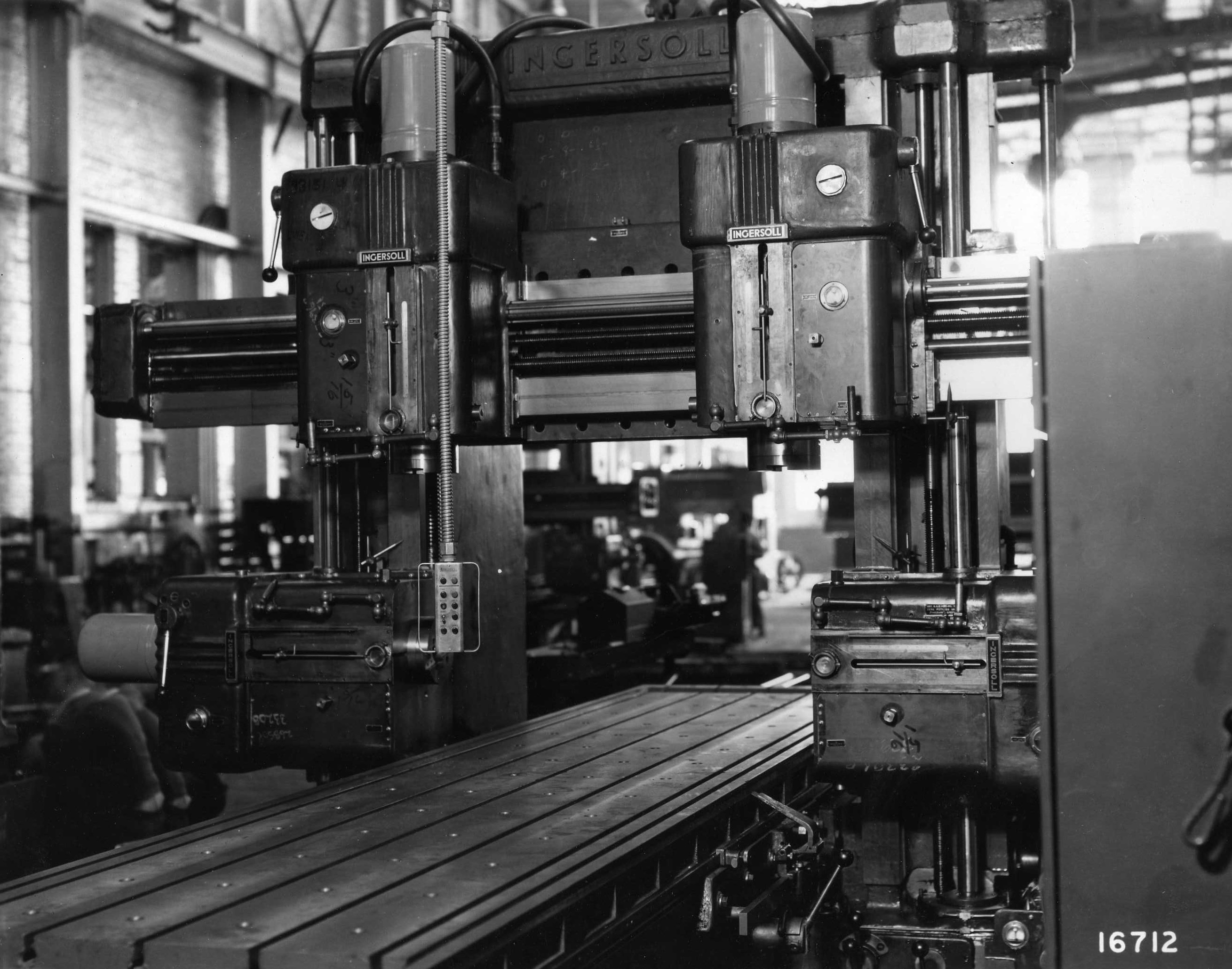

Ingersoll Milling Machine M-0853 S/N 16712 TypeA Adjustable Rail. This
is a very old, very big piece of machinery. We occasionally use this machine
for some of our more massive parts. Four heads (two vertical, two horizontal)
Table Size 48"X14' Distance between housings 49" Distance under rail 48
1/2" Total L-32'8" W-11'6" H-10'6".
Item #5-SOLD!!!!

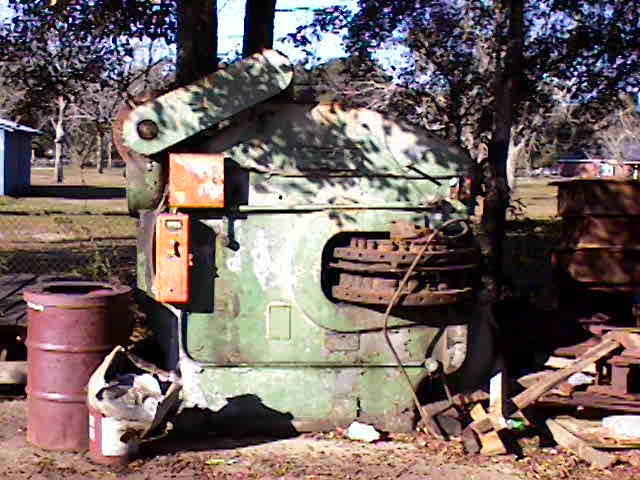

Wiedemann Punch
Huge beast of a thing. Type PR-61, Serial 208.
40 ton, 33" stroke, 60 strokes per minute
24 station ( 12B, 3C, 3D, 2EF, 2GH, 2JKL)
Weight... 14000 lbs? (it's a guess albeit educated)
Want it? Come by and take a look.
Item #6
Heat Treatment Oven
Digital Readout, Two Chambered Oven
Item #7-SOLD!!!!

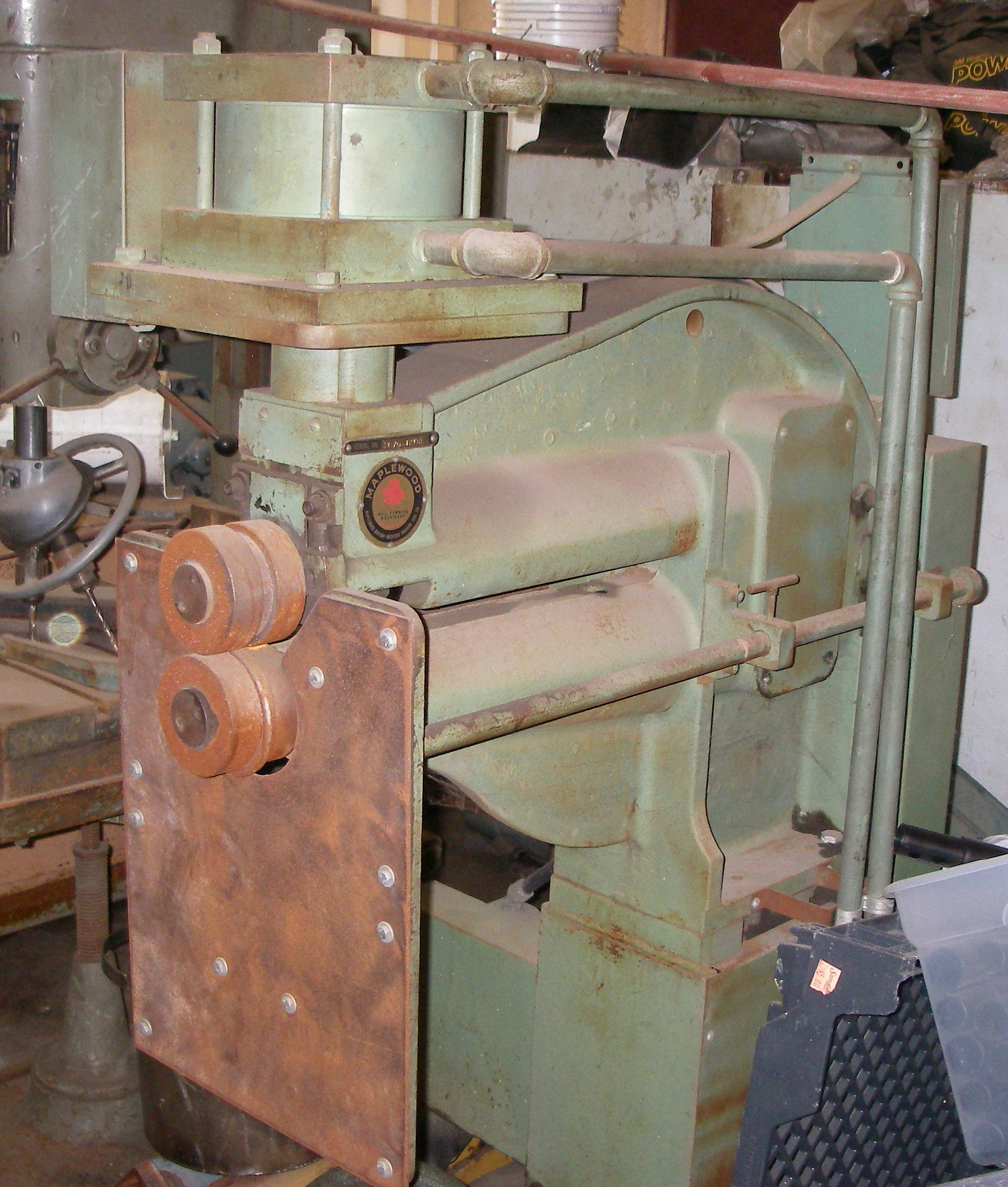

Maplewood 520
Heavy Duty Rotary Combination Machine
Serial No. 3527
Item #8
Item #9

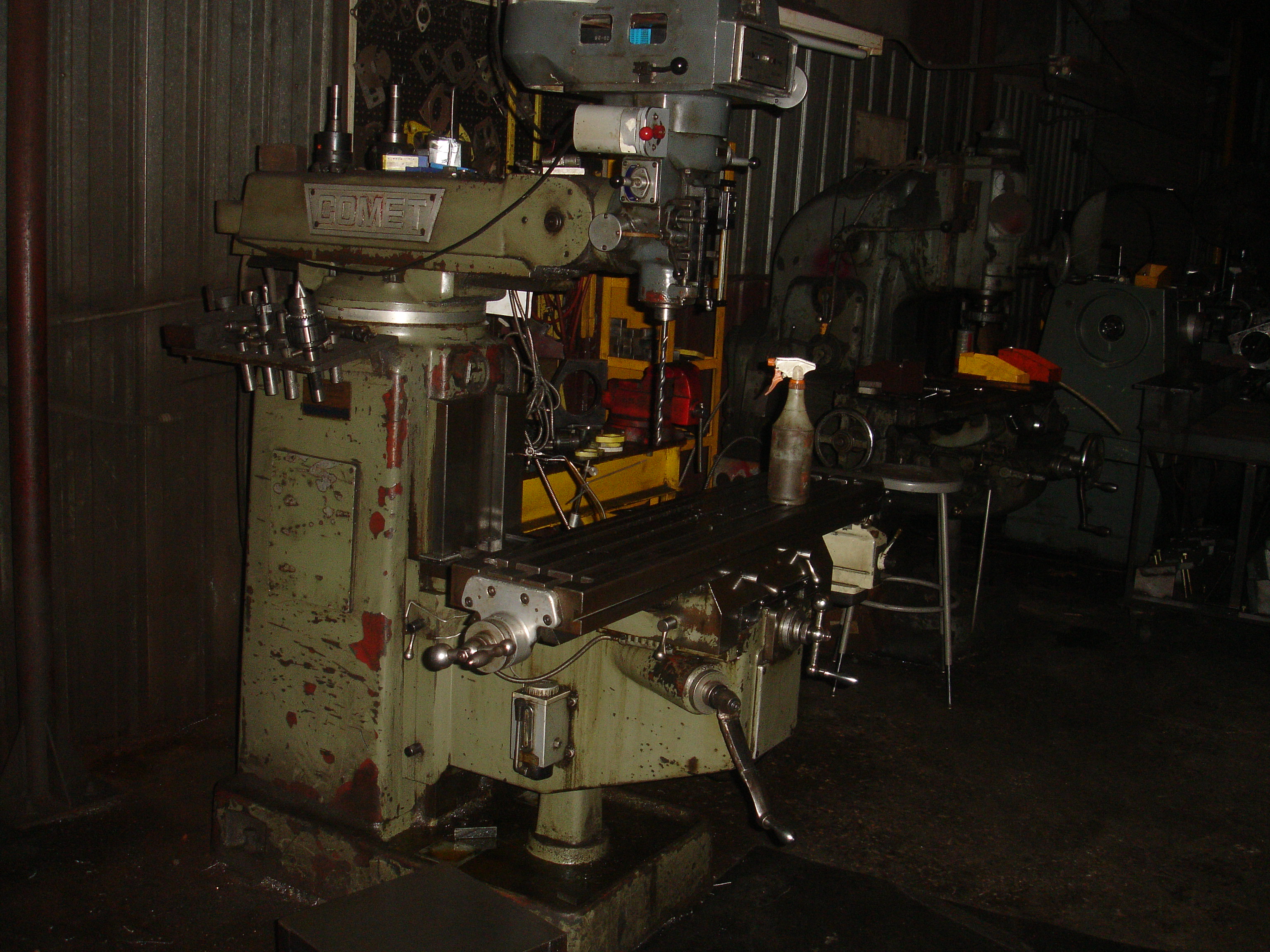

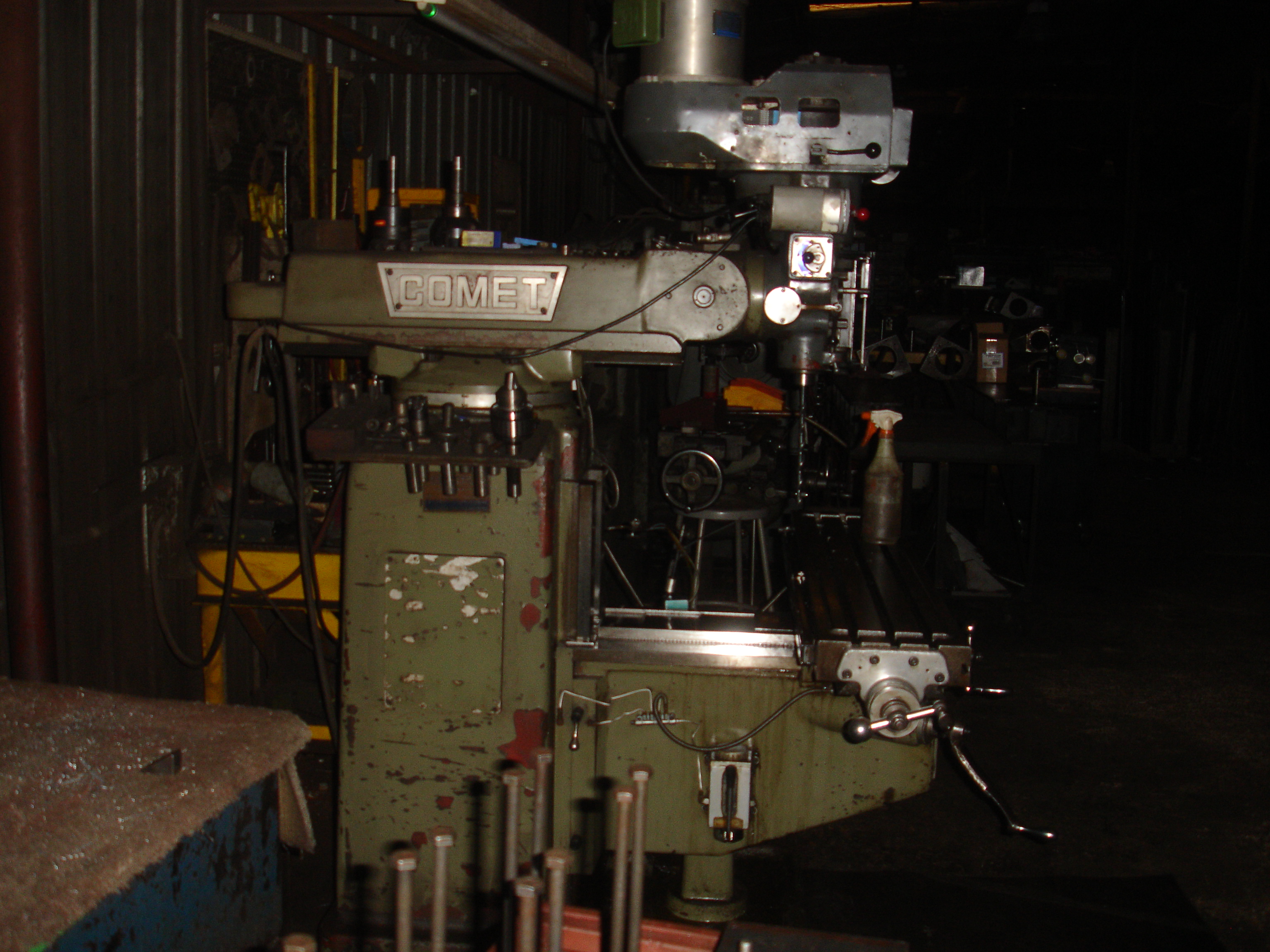

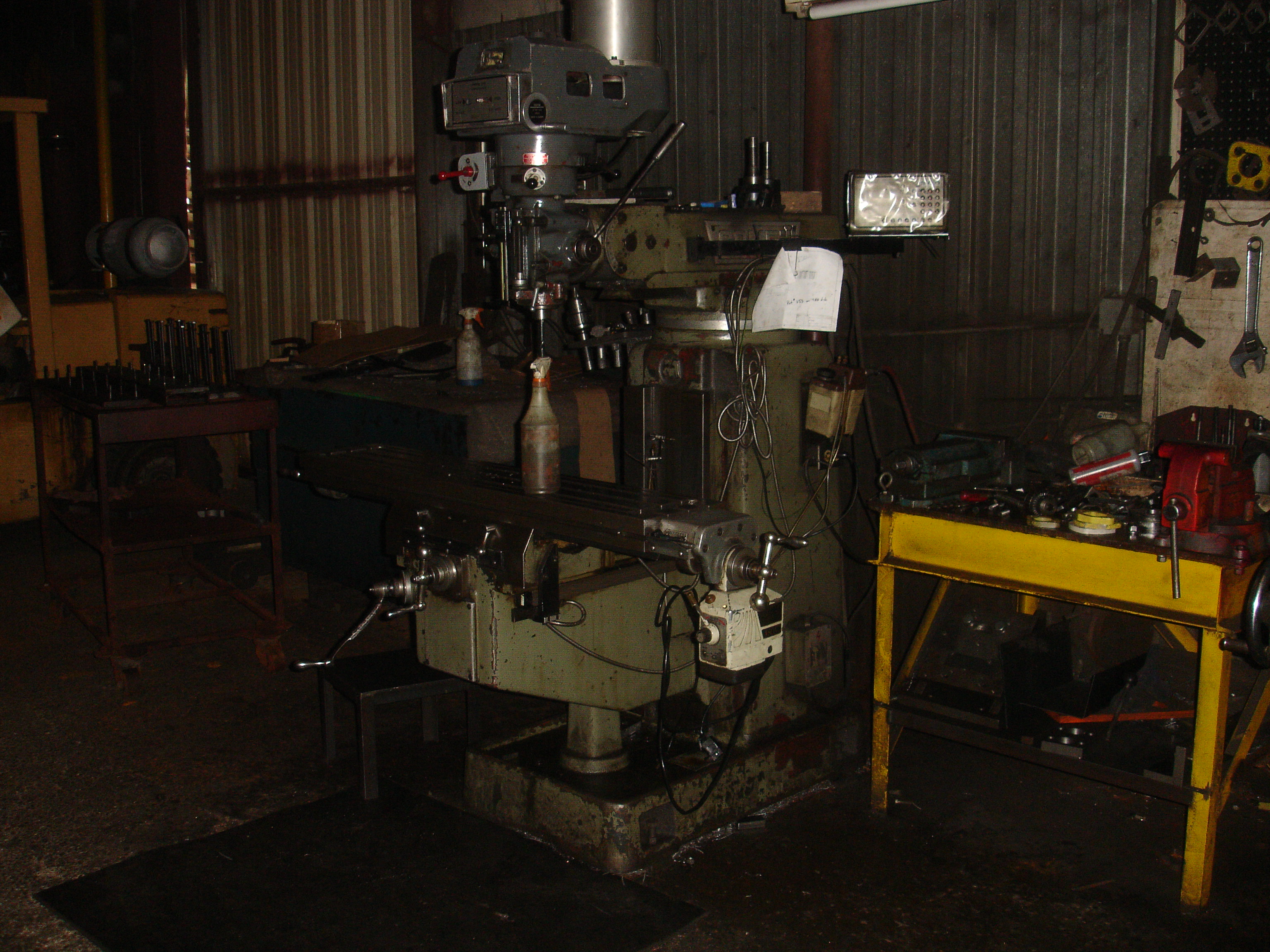

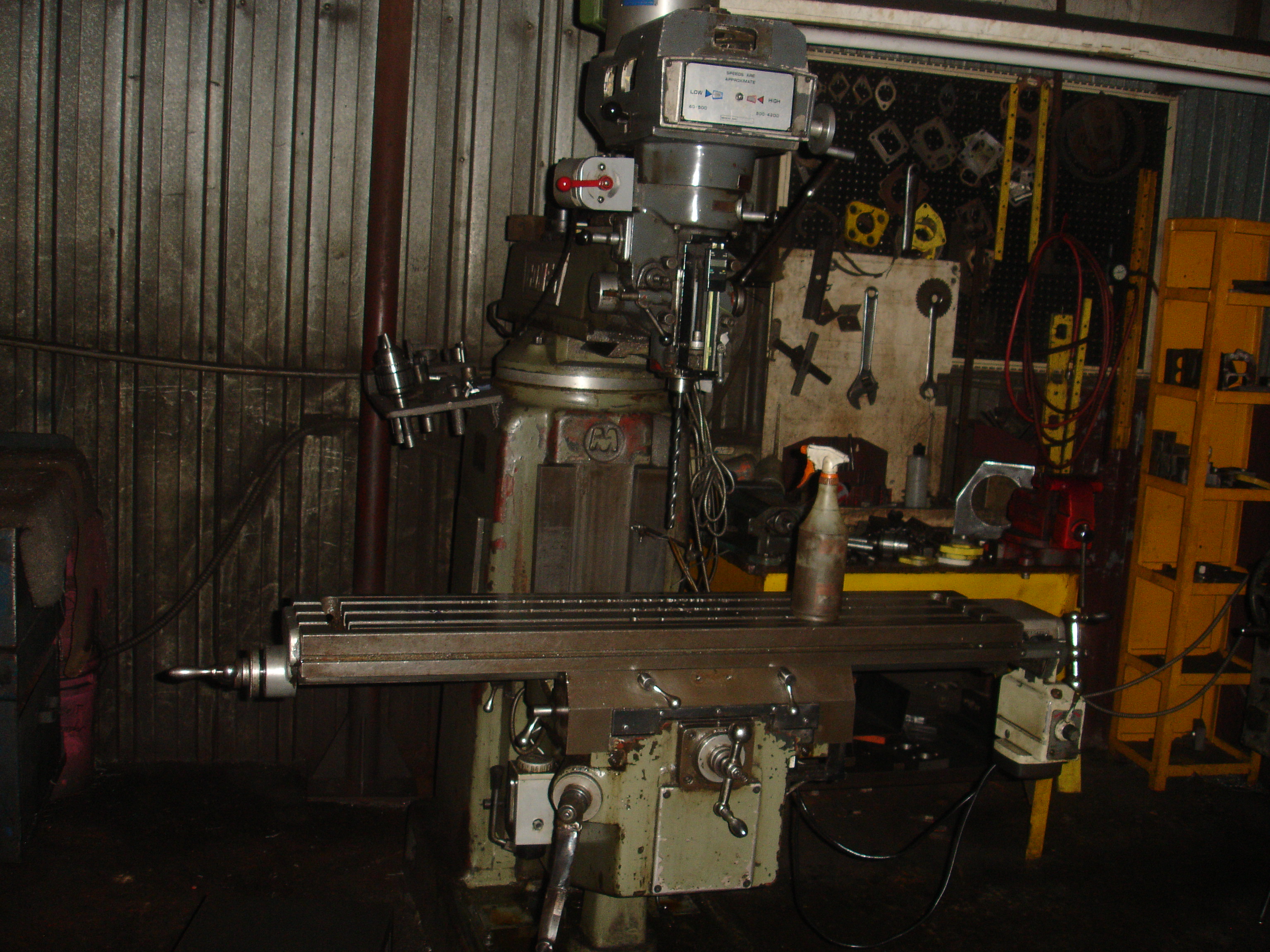

Comet Bridgeport type Knee Mill Machine
Model MV1636G serial #76508
3HP, R-8 taper, DRO
X-travel 34"
Y-travel 16"
Z-travel 16"
ram travel 24"
Variable/Stepless, Low 60-500, High 500-4200
needs new X power feed
No tooling included
Replaced this unit with a bigger machine. Still running, took out of service Feb 2016
I have some pictures that I can fax or e-mail if desired.
Please call or e-mail best offer.
Regards,
Mark Coulson
